SATA控制晶片

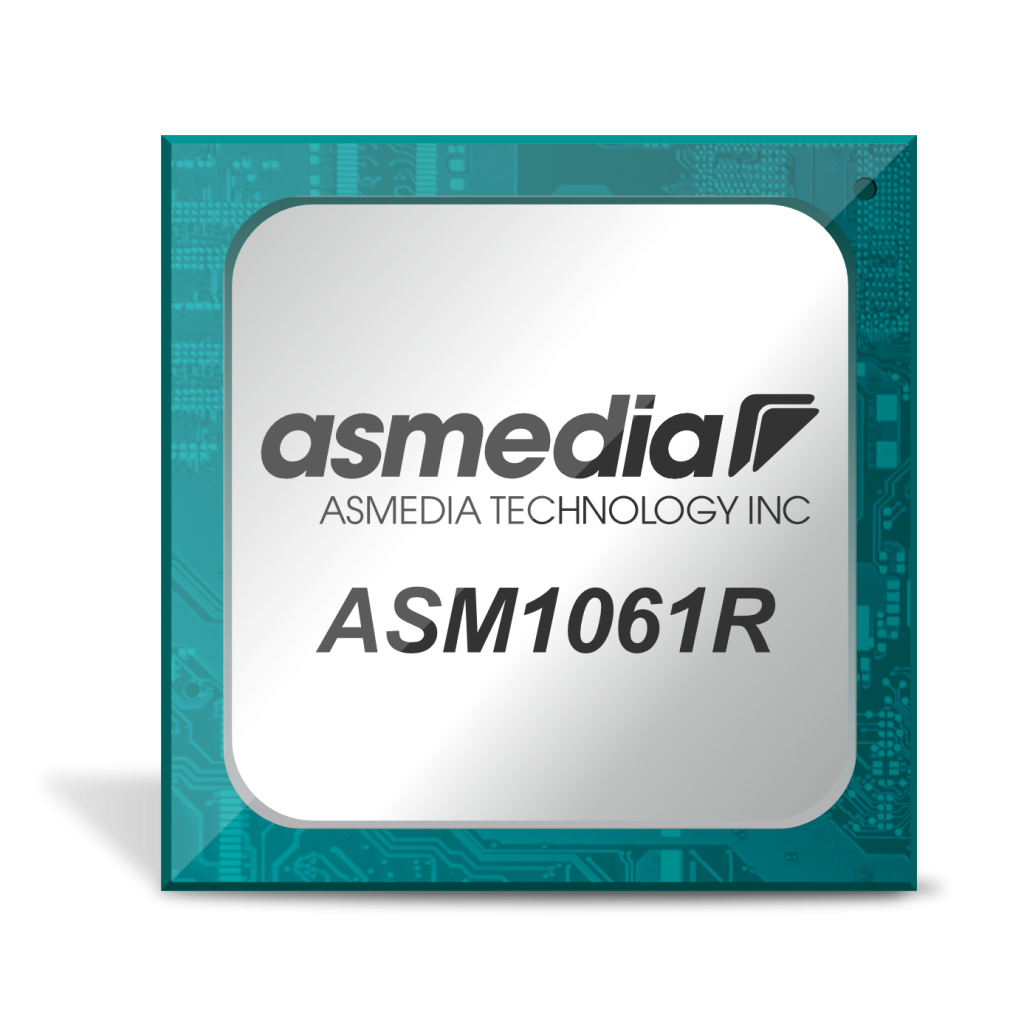

The ASM1061R is ASMedia’s second generation Serial ATA Advantage HCI controller, bridges PCI Express Gen2 x1 to two ports of Serial ATA 6Gps, integrates ASMedia Hydratek hardware RAID engine, enables Serial ATA PHY up to 6Gps high speed interface, supports SRIS (Separate Refclk Independent SSC) function, complies with Serial ATA Revision 3.2 Specification. ASM1061R is highly integrated with ASMedia PCI Express and SATA 6Gbps self-designed PHYs. ASM1061R can be applied on PC, mobile, servers, IPC, consumer electronic devices, storage devices, and communication applications.

The ASM1062R is ASMedia’s second generation Serial ATA Advantage HCI controller, bridges PCI Express Gen2 x2 to two ports of Serial ATA 6Gps, integrates ASMedia Hydratek hardware RAID engine, enables Serial ATA PHY up to 6Gps high speed interface, supports SRIS (Separate Refclk Independent SSC) function, complies with Serial ATA Revision 3.2 Specification. ASM1062R is highly integrated with ASMedia PCI Express and SATA 6Gbps self-designed PHYs. ASM1062R can be applied on PC, mobile, servers, IPC, consumer electronic devices, storage devices, and communication applications.
